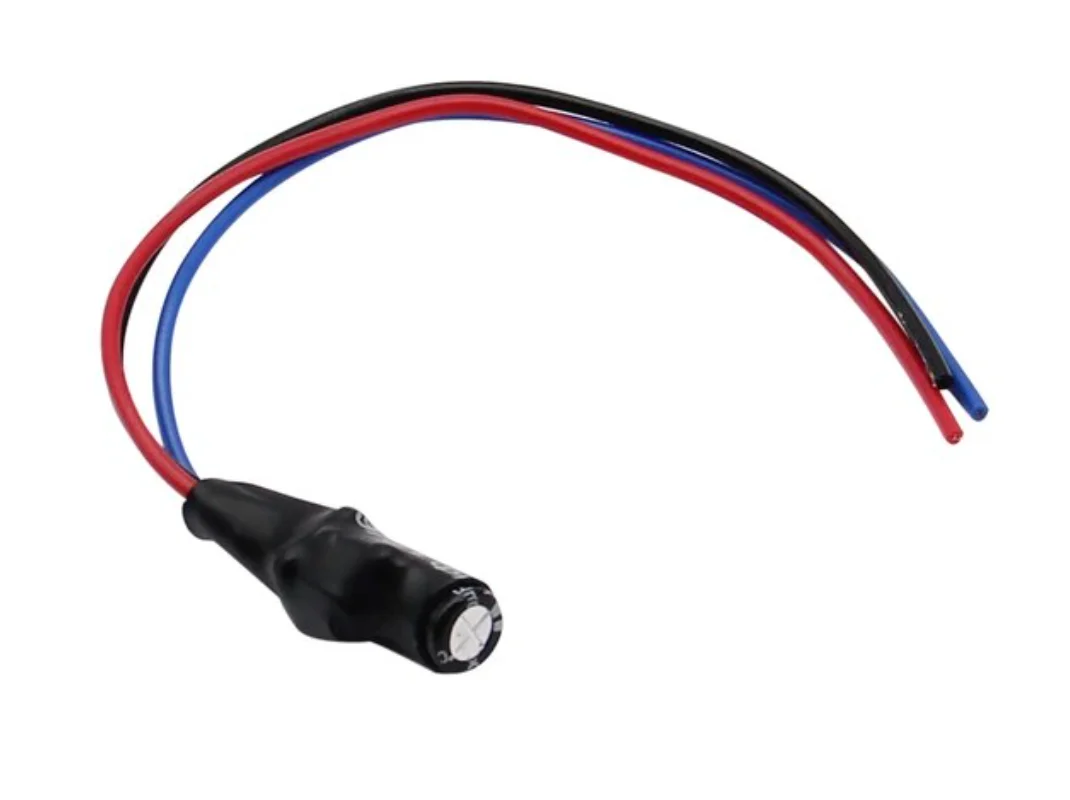

Reverse Camera Filter

This filter is specially designed to prevent interference when connecting a reversing camera. If you've plugged in a universal backup camera and have experienced drained power from the rear lights, this filter can be extremely helpful in preventing interference.

• Blue cable: Connect this to the positive wire (red wire) of the camera's power supply cable.
• Red cable: Connect this to the positive 12V+ terminal of the reverse lights.
• Black cable: Connect this to the negative terminal of the reverse lights or to the ground (earth).
